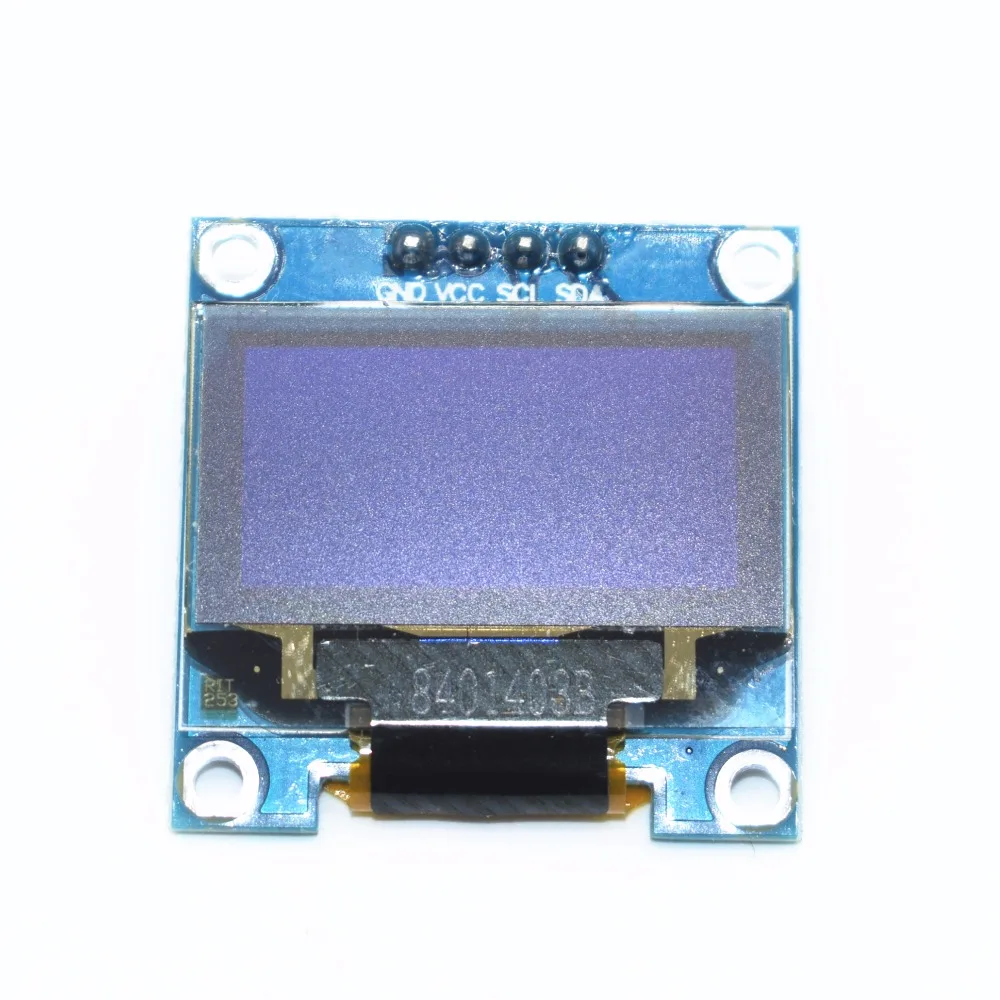

OLED Display Module 128×64 I2C (gnd-vcc-scl-sda) Blue

฿184.00

1 PCS. 4pin 0.96 “white / blue / yellow blue 0.96 inch OLED 128X64 OLED Display module 0.96” IIC I2C communicate arduino

111 in stock

SKU: out0004-3 Category:

128 * LED 64 LED display module for Arduino, supports a lot of control chip.

Fully compatible with for Arduino, 51 series, MSP430 series STM32 / 2, CSR IC, etc.
Ultra-low power consumption: full screen illuminated 0.08 W
Very high brightness and contrast adjustable
With integrated driver / controller
Interface Type IIC
Contact definition: GND, VCC, SCL, SDA
Contacts: 4 contacts
Voltage: 3 V ~ 5 V DC
Operating temperature: -30 ℃ ~ 70 ℃
Drive: 1/64 Duty
High Resolution: 128 * 64
Panel Dimensions: 26.70 * 19.26 * 1.85 mm / 1.03 * 0.76 * 0.07 inches (approximately)
Active area: 0.44 * 0.86 mm / 11.2 * 21.74 inches (approx.)
IC driver: SSD1306
DSC_0895_2
DSC_0909_
Package included : 1pcs OLED Display Module 128×64 I2C (gnd-vcc-scl-sda) Blue
